DC-DC降压恒压

型号:SL1588M
封装:SOT23-6
输入范围:4.5V-26V
输出电压:ADJ可调
输出电流:2A
工作频率:500KHZ
驱动MOS管:内置
静态电流:0.8mA
关断电流:4uA
立即询价

SL1588M 28V 2A 500KHz ECOT PSM Sync Step-Down Regulator


General Description

The SL1588M is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power

MOSFETs. It offers a very compact solution to provide a 2A continuous output current over a wide input supply

range, with excellent load and line regulation. ECOT PSM control operation provides very fast transient response

and easy loop design as well as very tight output regulation.

The SL1588M requires a minimal number of readily available, external components and is available in a space saving

SOT23-6 package.


Features

• Wide 4.5V to 28V Operating Input Range

• 2A Continuous Output Current

• 500KHz Switching Frequency

• ECOT PSM Mode Control with Fast Transient

Response

• Built-in Over Current Limit

• Built-in Over Voltage Protection

• PFM Mode for High Efficiency in Light Load

• Internal Soft-Start

• 100mΩ/50mΩ Low RDS(ON) Internal Power

MOSFETs

• Output Adjustable from 0.8V

• No Schottky Diode Required

• Short Protection with Hiccup-Mode

• Integrated internal compensation

• Thermal Shutdown

• Available in SOT23-6 Package

• -40°C to +85°C Temperature Range


Applications

• Automotive Systems

• Network Terminal Equipment

• Security Monitoring Camera

• Printer Systems

• Industrial Power Systems

• Distributed Power Systems

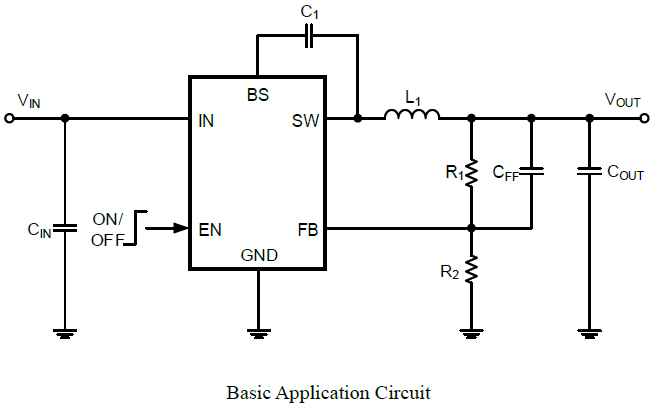

Typical Application Circuit


更详细资料,请联系销售!
